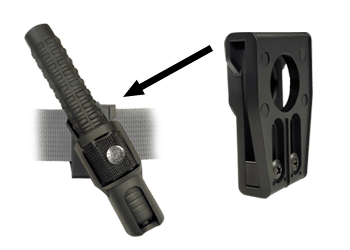

We would like to present the belt clips we produce for our plastic as well as nylon holders. These clips are located at the back of every holder and determine the way the holder is carried and how it is attached to a belt or to a MOLLE system.
There are nine variations of the belt clips in our offer – therefore there are nine possible ways of attaching the holder to your belt or gear. We produce eight plastic rotation clips; one of our clips is made of metal and cannot be rotated.
At first sight, it might seem there are perhaps too many variations of the belt clips – but when you examine them more closely, you will find out each clip has its unique advantages and is suitable for a different type of use. Thanks to this variety, truly everyone is able to pick the most appropriate mode of carrying an ESP holder, be it on the belt, on MOLLE or directly attached to the trousers.
How to make sense of it all and pick the right holder?
Each holder we produce is composed of:
- The holder body (without the fixation clip), which determines what you will carry inside the holder (for example a baton, a flashlight, a defensive spray or a weapon magazine).
- The fixation clip, for example UBC-01 or UBC-02, or the metal clip, paddle etc.
First choose the holder body according to what you intend to carry inside it (a baton, a flashlight, a defensive spray …) and according to how you want this equipment to be secured.
Then choose the type of the fixation clip according to where you want to carry the holder – on a belt, on a MOLLE, or directly on trousers.
Holders with plastic rotation clips
Plastic rotation clips allow for advanced attachment of the holders onto your gear. Most of them are designed to be worn on the belt, but some of them enable fixation to the MOLLE system as well.
All of the plastic clips allow for the rotation of the holder body in the scale of 360°. The grooved rotation plate enables turning the holder into 16 fixed positions. The holder body is connected to the clip with a screw via a flexible washer thanks to which no tools are necessary to rotate the holder.
You can adjust the force needed to rotate the holder by tightening the screw according to your needs.
The equipment inside the holder can be rotated into a position which is most suitable for you to quickly draw it or which keeps it out of your way during movement. For example while driving a car, you can turn the baton holder parallel to your belt.
The plastic clips with the Quick Change system form a separate group which we will describe below.

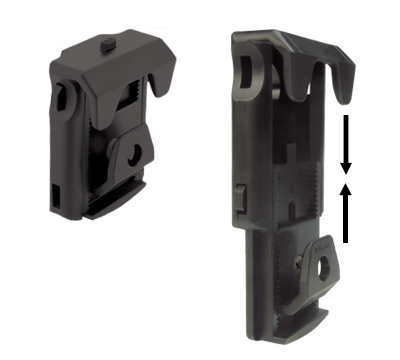

UBC-01 Belt clip
This type of clip enables rapid attachment of the holder to a belt with one hand only and without the necessity of unbuckling the belt.
The holder can be smoothly rotated in the range of 360 degrees without the use of any tool (there are 16 possible fixed positions).
This clip is patented in Europe and in the USA.
- The clip has been designed for belts with the width from 32 to 55 mm.

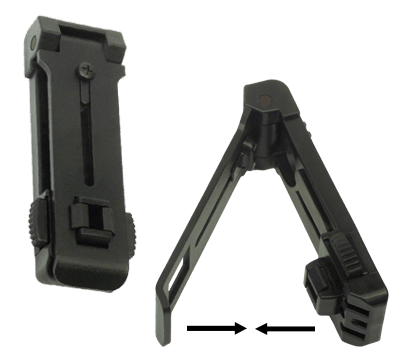

UBC-02 Belt clip
This type of clip enables rapid attachment of the holder to a belt with one hand only and without the necessity of unbuckling the belt. In comparison with fixing clip UBC-01, the distance between the belt and the holder is smaller with this type of clip.
The holder can be smoothly rotated in the range of 360 degrees without the use of any tool (there are 16 possible fixed positions).
It can be alternatively fastened to MOLLE MIL STD webbing.
- The clip has been designed for belts with the width from 25 to 60 mm.

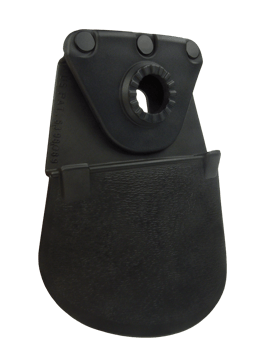

Paddle Fobus
This “paddle” type of fixture from the renowned company Fobus enables comfortable carrying of the holder. The paddle has been designed for carrying on ordinary clothes and it tightly fits the user’s body.
Its special bent shape firmly secures the holder during carrying. This clip, as one of only a few of paddle type clips on the market, also enables smooth rotation in the range of 360 degrees without the use of any tool (there are 16 possible fixed positions).
UBC-03 Belt clip
The holder is attached in the usual way by slipping the belt through the hole in the clip.
The holder can be smoothly rotated in the range of 360 degrees without the use of any tool (there are 16 possible fixed positions).
Its design is patented in Europe and in the USA.
- The clip can be adjusted to the belt width from 32 to 60 mm by an adjustable stop with two screws.

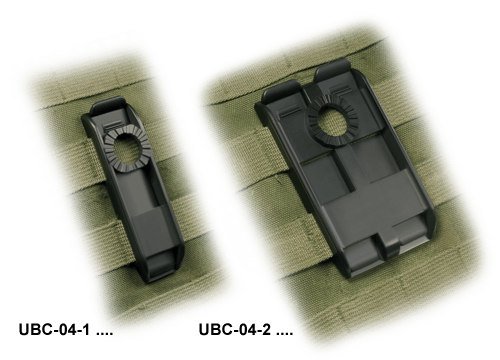

UBC-04 MOLLE clip
This type of clip allows secure and firm fixation of ESP holders to a MOLLE webbing with the possibility of 360° rotation and fixing in 16 locking positions (without the use of any tool).
ESP holders (supplied with UBC-04 clip) can be attached to any present-day tactical / ballistic vest or tactical backpacks just by inserting the plastic fixating plug of the UBC-04 into the MOLLE straps.
Its design is patented in Europe, in the USA and in China.
Bracket is available in single-row (UBC-04-1) or double-row version (UBC-04-2) for a heavier or a larger gadget.
Holders with Quick Change system
These universal clips enable the user to quickly change between different plastic and nylon ESP holders with rotation mechanism. The clip itself remains fastened to the belt or to a MOLLE webbing – you only need to click on the holder of choice.
Thanks to this highly flexible system, the user is able to change his or her equipment according to the particular needs at a given moment. A baton holder can be switched for a flashlight holder or for a magazine holder. In case of need – for example when the police officer is busy with administrative work – the holders that are currently not necessary can be put away completely.
The holder can be smoothly rotated in the range of 360 degrees without the use of any tool (there are 16 possible fixed positions).

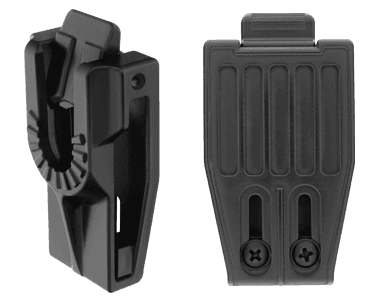

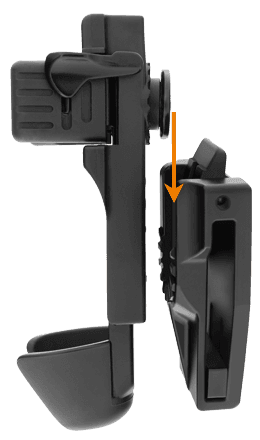

UBC-05
This universal belt clip enables the user to quickly change between different plastic and nylon ESP holders with rotation mechanism. The clip itself remains fastened to the belt – you only need to click on the holder of choice.
Thanks to this highly flexible system, the user is able to change his or her equipment according to the particular needs at a given moment. A baton holder can be switched for a magazine holder or for a flashlight holder.
In case of need – for example when the police officer is busy with administrative work – the holders that are currently not necessary can be put away completely.
The belt is pulled through the opening in the body of the clip. The holder is then slid onto the clip and secured with locking mechanism. The clip can be adjusted to belt width from 32 mm to 60 mm with the use of an adjustable stop with two bolts.
The holder can be rotated in respect to the belt by full circle of 360 degrees with 16 locking positions.
Holders with metal clip
This is a basic way of carrying the holder. The flexible metal clip enables you to quickly attach the holder to the belt without the need to unbuckle it.
The metal clip is attached to the holder body with a rivet. Due to this fact, it is the only clip from our selection which does not allow for the 360° rotation ofthe holder in relation to the belt.
- This metal clip has been designed for belts with the width from 45 to 50 mm.
